Mastering Fire Safety: A Practical Guide to Fire Suppression Systems

Mastering Fire Safety: A Practical Guide to Fire Suppression Systems

A fire suppression system is more than just a tool for regulatory compliance; it's a proactive investment that protects your business operations, valuable assets, and personnel. An effective system can automatically respond to a fire in its earliest stages, stopping a potential disaster before it can escalate. This guide will provide an in-depth look at fire suppression systems, helping you understand their principles, different types, and how to make an informed choice for your specific environment.



1. The Core Principles of Fire Suppression Systems

To understand how fire suppression systems function, one must first grasp the science of combustion. The traditional "Fire Triangle" model identifies three essential elements: fuel, heat, and oxygen. The more advanced "Fire Tetrahedron" model adds a fourth critical component: the chemical chain reaction. All four elements must be present for a fire to occur and be sustained.

The fundamental purpose of a fire suppression system is to break this cycle by removing or disrupting at least one of these elements. For example:

  • Water-Based Systems: Primarily work by removing the heat element through cooling.

  • Inert Gas Systems: Reduce the oxygen concentration to a level where combustion is no longer possible by displacing the air.

  • Clean Agents: Such as FM-200 and Novec 1230, are designed to interrupt the chemical chain reaction at a molecular level.

  • Foam Systems: Operate on a multi-pronged approach, removing both heat and oxygen while simultaneously encapsulating the fuel source to prevent reignition.

Active vs. Passive Fire Protection

Fire suppression systems are a form of active fire protection (AFP), meaning they actively respond to a fire event by dispersing an extinguishing agent or sounding an alarm. This contrasts with passive fire protection (PFP), which involves using fire-resistant materials, walls, and doors to contain a fire and slow its spread. Both are crucial to a building's overall fire safety strategy, but active systems are distinguished by their automated, responsive nature.

From a business perspective, an automatic fire suppression system is a critical investment. It can detect and extinguish a fire in its incipient stage, minimizing risk to occupants, property, and sensitive equipment, such as in data centers.



2. The Key Components of a Fire System

A modern fire suppression system is an integrated network of devices that function as a cohesive unit. Its core architecture is built around a central command hub that coordinates a sensing network, triggers alerts, and activates the agent delivery mechanism.

  • The Central Command: The Control Panel

    The control panel serves as the "nerve center" of a fire suppression system. It processes signals from various detectors and initiates the appropriate response based on a pre-programmed algorithm.

    • Conventional Control Panels: Divide a building into zones, identifying only the general area of a fire.

    • Addressable Control Panels: Each detector has a unique address, allowing for precise pinpointing of a fire's location.

    • Intelligent Control Panels: Possess self-monitoring capabilities, continuously assessing the system's health and providing detailed status information for each device.

  • The Sensing Network: Detection Mechanisms

    A system's effectiveness is critically dependent on its ability to detect a fire in its earliest stages. It often employs multiple detection mechanisms to ensure accuracy and prevent false alarms:

    • Smoke Detectors: Sense smoke particles in the air. Ionization detectors are more responsive to fast-flaming fires, while photoelectric detectors are better at identifying smoldering fires.

    • Heat Detectors: Activated by a rise in temperature. Fixed-temperature detectors trigger when a pre-set temperature is reached, while rate-of-rise detectors respond to a rapid increase.

    • Flame Detectors: Use advanced light sensors to identify the distinct patterns of flames, providing an additional layer of confirmation in high-risk environments.

  • Alert and Action: Notification and Agent Delivery

    Once a fire is detected and confirmed, the control panel activates notification appliances, such as sirens and strobe lights, to alert occupants to evacuate. After a pre-set delay, the system releases the suppression agent through a network of pipes and nozzles to extinguish the flames.



3. Understanding Suppression Agents: Choosing the Right System

Fire suppression systems are categorized by the extinguishing agent they deploy, each with specific applications, advantages, and limitations. The choice of system is highly dependent on the type of fire risk present, which is classified into five main categories.

Class of Fire Description Typical Fuel Sources Appropriate Extinguishing Agents
Class A Fires in ordinary combustible materials Paper, wood, cloth, rubber, many plastics Water, water mist, foam, dry chemical, clean agents, inert gas
Class B Fires in flammable liquids, gases, and greases Gasoline, oil, alcohol, lacquers, solvents Foam, dry chemical, wet chemical, clean agents, inert gas,
Class C Fires that involve energized electrical equipment Appliances, wiring, electronic components Dry chemical, clean agents, inert gas,
Class D Fires in combustible metals Magnesium, titanium, sodium, potassium, lithium Dry powder agents specifically for Class D fires
Class K Fires in cooking appliances that involve combustible cooking media Vegetable oils, animal fats Wet chemical agents specifically for Class K fires

Sources:



3.1 Water-Based Systems

Water-based systems, most notably fire sprinklers, are the most common and cost-effective type of fire suppression. They are highly effective for Class A fires involving common combustibles like wood and paper. Water absorbs heat, lowers the temperature, and helps prevent the fire from spreading.

  • Wet Pipe Systems: The most prevalent type, these systems are filled with water at all times for rapid suppression.

  • Dry Pipe Systems: Use pressurized air in the pipes, which is released before water flows. Ideal for unheated areas where water could freeze.

  • Pre-Action Systems: Filled with air, water is released only after a separate smoke or heat detector is triggered. Suitable for environments where accidental water discharge must be avoided, such as libraries or data centers.

  • Deluge Systems: Have open nozzles and discharge a large volume of water simultaneously across an entire area. Used in industrial settings with high-hazard risks, such as flammable liquid spills.

The widespread adoption of water-based systems is tempered by a critical limitation: water can cause significant collateral damage to sensitive equipment and is ineffective or dangerous on Class B, C, and D fires.



3.2 Gaseous and Clean Agent Systems

These systems are designed for environments where water is impractical or hazardous, such as data centers, museums, and telecommunications centers. They are electrically non-conductive, leave no residue, and are effective against Class A, B, and C fires without causing damage to sensitive equipment. They work by either reducing oxygen concentration, absorbing heat, or interrupting the chemical chain reaction of the fire.

Due to environmental regulations and corporate decisions, the industry is currently undergoing a significant transition.

Agent Mechanism of Action Environmental Impact Suitability for Occupied Spaces Current Regulatory Status
FM-200 Absorbs heat from the fire, disrupting the chemical reaction. High global warming potential (GWP). Non-toxic to humans. Being phased down due to the AIM Act.
3M Novec 1230 Absorbs heat and removes it from the fire. Zero ozone depletion potential (ODP). Environmentally safer than FM-200. Safe for humans and leaves no residue. Discontinued by 3M by the end of 2025 due to a phase-out of PFAS chemicals.
Inergen Reduces oxygen levels to below the point of combustion while maintaining a breathable atmosphere for humans. Environmentally friendly, composed of naturally occurring gases (nitrogen, argon, ). Safe for occupied spaces, as it allows humans to assimilate oxygen. A popular, environmentally friendly replacement for FM-200 and Novec 1230.
Fluoro-K Disrupts the chemical chain reaction. Zero ozone depletion potential (ODP) and low GWP. Non-toxic and leaves no residue, suitable for occupied spaces. A popular and cost-effective replacement for FM-200 and Novec 1230.
Displaces oxygen to extinguish the fire. Environmentally friendly; leaves no residue. Toxic to humans; not recommended for occupied spaces. Effective for non-occupied areas with valuable equipment.



3.3 Chemical and Foam Systems
  • Dry Chemical Systems: Release a dry chemical powder to extinguish fires. Effective against Class A, B, and C fires with rapid "knockdown" capabilities. Drawback is the extensive cleanup required after discharge.

  • Wet Chemical Systems: Designed specifically for commercial kitchens, they use a liquid agent that reacts with hot cooking oils and fats to create a cooling, non-flammable foam blanket that prevents reignition.

  • Foam-Based Systems: Utilize an aerated foam to create a physical barrier between the fuel and oxygen, thereby cooling the fire and preventing the release of flammable gases. Ideal for large-scale fires involving flammable liquids, such as in refineries, warehouses, and aircraft hangars.



3.4 Hybrid and Specialized Systems
  • Water Mist Systems: Produce a fine mist of water droplets up to 100 times smaller than those from a traditional sprinkler head. This allows the system to extinguish fires with minimal water, making it a viable solution for spaces that cannot be exposed to large amounts of water.

  • Hybrid Systems: Combine water with an inert gas or foam to maximize suppression efficiency while minimizing collateral damage.

  • Micro-Environment Systems: Stand-alone, automatic solutions designed to protect a single, critical piece of equipment, such as a CNC machine, electrical cabinet, or server rack.



4. Choosing the Right System for Your Environment

The choice of a fire suppression system is a critical decision that must be based on a thorough analysis of the specific fire risks, asset value, and operational environment.

  • Data Centers and Server Rooms: Clean agents and inert gases are the preferred solutions, as they suppress fires without leaving a residue or causing electrical damage.

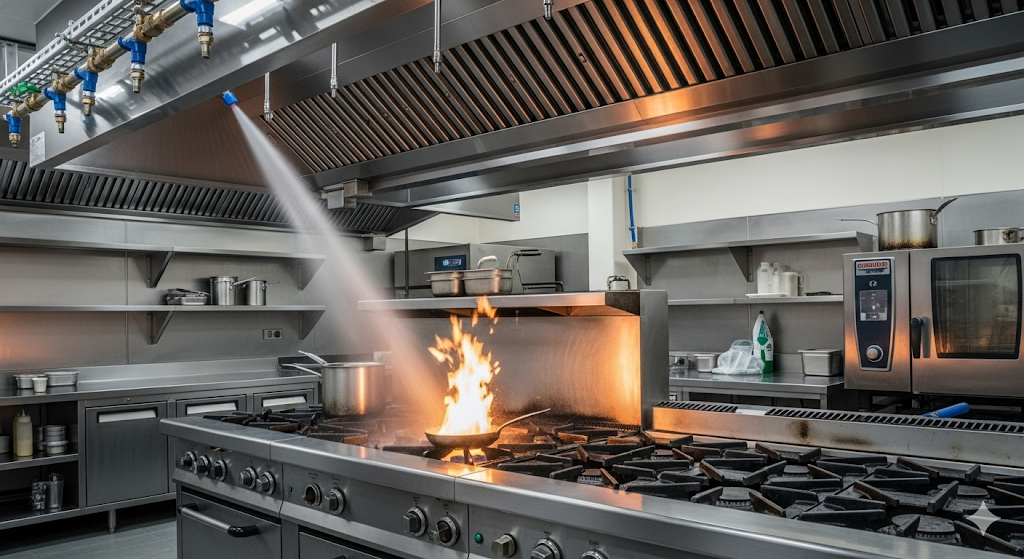

  • Commercial Kitchens: The presence of combustible cooking media (Class K fires) requires a wet chemical system, specifically engineered to handle hot oils and fats.

  • Industrial Facilities and Refineries: Environments with flammable liquids and hazardous materials require agents capable of smothering fuel sources. Foam-based systems are ideal for large areas, while dry chemical systems are effective for localized risks.

  • High-Rise and Residential Buildings: The primary focus is life safety and the protection of common combustibles (Class A fires). Water-based sprinkler systems are the most common and often mandated by fire safety codes.



5. Regulations and Maintenance: Ensuring System Reliability

Compliance with fire safety regulations is a fundamental aspect of effective risk management. Regulatory bodies such as the National Fire Protection Association (NFPA) establish comprehensive standards that govern the design, installation, and maintenance of fire suppression systems.

  • NFPA 1: Fire Code: The foundational code providing general guidelines for fire prevention and protection.

  • NFPA 13: Standard for the Installation of Sprinkler Systems: Governs the design and installation of automatic sprinkler systems.

  • NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems: Details the ongoing procedures required to ensure the long-term integrity of water-based systems.

  • NFPA 72: National Fire Alarm and Signaling Code: Establishes requirements for fire detection and alarm systems.

  • NFPA 2001: Standard on Clean Agent Fire Extinguishing Systems: Specifically governs the use of clean agent systems.

In addition, a rigorous maintenance program is crucial. A neglected system can become a liability, failing to detect or suppress a fire. It is recommended that systems be thoroughly inspected at least twice a year.



6. The Future of Fire Safety: AI and Sustainability

The fire safety industry is in a state of rapid evolution, driven by technological innovation and a global commitment to environmental responsibility. The future of fire suppression is moving toward a proactive and predictive model.

  • AI-Powered Detection and Analytics: AI and machine learning algorithms are being used to analyze data to predict potential fire risks.

  • IoT-Connected Smart Systems: The Internet of Things (IoT) is enabling smart fire alarms and suppression systems that provide real-time data and remote monitoring. Users can receive immediate alerts on mobile devices and monitor the system's status from anywhere.

  • Drones for Firefighting: Drones equipped with thermal imaging can provide aerial surveillance of fire locations, detect people trapped, and even deploy fire retardants to affected areas.

The industry is also actively transitioning toward eco-friendly agents that are free of per- and polyfluoroalkyl substances (PFAS) and have a lower global warming potential (GWP). The phase-out of agents like FM-200 and the discontinuation of Novec 1230 by 3M are key catalysts for this shift. This has led to the rise of alternatives like Inergen and Fluoro-K, which are non-toxic, environmentally responsible, and highly effective.

Conclusion: Your Fire Safety Strategy

A fire suppression system is an essential and strategic asset for any business or building owner. The decision to invest in a system should be guided by a comprehensive analysis of the fire tetrahedron's principles, the specific risks of the environment, and the total cost of ownership.

  1. View Fire Suppression as a Strategic Investment: The lowest upfront cost does not equal the best value. The most cost-effective system is one that is tailored to its specific environment and capable of preventing the most damaging consequences.

  2. Align System Selection with the Fire Tetrahedron: Choose systems based on a nuanced understanding of how their extinguishing agents neutralize the specific fire risks of the environment.

  3. Prioritize Future-Proof Solutions: The industry is moving toward intelligent, predictive systems and environmentally responsible agents. Prioritize solutions that are non-toxic, have a low environmental impact, and are integrated with modern technologies like IoT and AI.

  4. Embrace a Lifecycle Management Approach: Establish a comprehensive, proactive maintenance and inspection program. This ongoing commitment is the final and most critical layer of a comprehensive fire protection strategy.
